Drone vs Traditional Surveying
Drone surveying has changed how construction sites, mines, and large land areas get measured. But it has not replaced traditional ground surveying entirely. Each method has a sweet spot, and knowing which one fits your project saves both time and money.
This guide compares the two methods across cost, accuracy, turnaround time, deliverables, and use-case suitability so you can make the right call before you spend a dollar.
The Short Version
For most construction, earthwork, and large-area mapping projects, drone surveying is the better choice. It is 50-75% cheaper, 60-80% faster in the field, and produces denser, more visually useful data.
For legal boundary surveys, underground utility location, recorded plats, and sub-centimeter precision work, traditional ground surveying is still required. No drone can replace a licensed surveyor stamping a property boundary.
Many projects benefit from both: a drone survey for the topo and surface data, plus a traditional surveyor for boundary corners and legal certification.
Head-to-Head Comparison
| Metric | Drone Survey | Traditional Ground Survey |
|---|---|---|
| Cost per acre (photogrammetry) | ✓ $150-$300 | $500-$2,000 |
| Cost per acre (LiDAR / high-accuracy) | ✓ $150-$500 | $800-$3,000 |
| Field time for 40-acre site | ✓ 30-90 minutes | 2-4 days |
| Processing time | ✓ 1-4 hours (same day) | 1-2 days |
| Horizontal accuracy (with RTK/GCPs) | 1-3 cm | ✓ Sub-centimeter to 1 cm |
| Vertical accuracy (with RTK/GCPs) | 2-5 cm | ✓ Sub-centimeter to 1 cm |
| Data density | ✓ Millions of points | Hundreds of points |
| Deliverable types | Orthomosaic, 3D mesh, point cloud, DEM, contours | CAD drawing, point list, boundary description |
| Vegetation penetration | LiDAR only; photogrammetry needs clear ground | Total station can shoot through canopy gaps |
| Repeat survey cost | ✓ $1,500-$3,000/visit | Full crew cost every time |
| Legal boundary survey | Not sufficient alone | ✓ Required by law |
| Safety risk to crew | ✓ Minimal (pilot stays grounded) | Higher (steep terrain, active sites, traffic) |
Real-World Cost Example: 20-Acre Construction Site
Drone Survey
- ✓ Field time: 30-60 minutes
- ✓ Same-day deliverable
- ✓ Orthomosaic + 3D model + contours
- ✓ Millions of data points
Traditional Ground Survey
- ✓ Field time: 2-4 days
- ✓ 1-2 week deliverable
- ✓ CAD drawing + point list
- ✓ Hundreds of data points
Drone surveying saves 50-75% on this site while producing more data. A licensed surveyor can stamp drone-derived topo data for an additional fee if legal certification is needed.
A drone surveyor can map a 40-acre site in under an hour — a ground crew would need days.
Accuracy: What the Numbers Mean
Drone survey accuracy depends on the technology and ground control. Here is the breakdown:
- Drone photogrammetry with RTK/GCPs: 1-3 cm horizontal, 2-5 cm vertical. Meets ASPRS standards for most mapping and construction applications.
- Drone LiDAR: 1-3 cm horizontal and vertical. Better in vegetation and low-light conditions.
- Drone without ground control (GPS only): 1-3 meter accuracy. Reference-grade only, not suitable for certified deliverables.
- Traditional total station: Sub-centimeter to 1 mm. Required for legal boundaries, utility staking, and structural monitoring.
- RTK GPS rover (ground): 1-2 cm horizontal, 2-3 cm vertical. Comparable to drone RTK accuracy but single-point measurements only.
The practical takeaway: drone accuracy is sufficient for site planning, earthwork, grading verification, stockpile volumes, and progress tracking. Traditional surveying remains necessary when sub-centimeter precision is legally or structurally required.
Which Method Fits Your Project?
| Project Type | Drone | Traditional | Recommended |
|---|---|---|---|
| Construction site topo (5+ acres) | Best choice | Slower, costlier | Drone |
| Construction progress monitoring | Best choice (weekly flights) | Impractical for frequency | Drone |
| Stockpile volume calculation | Best choice (2-3 cm accuracy) | Slower, less complete | Drone |
| Large-area mapping (50+ acres) | Best choice | Cost-prohibitive | Drone |
| Legal boundary / property survey | Cannot replace | Required | Traditional |
| Underground utility location | Cannot detect | Required (with GPR) | Traditional |
| Small site (under 1 acre) | Higher minimum cost | More efficient | Traditional |
| Hazardous or hard-to-reach terrain | Best choice (no crew risk) | Safety risk | Drone |
| Corridor survey (roads, pipelines) | Best choice (linear flight) | Very slow | Drone |
| Recorded plat / subdivision | Not sufficient | Required by law | Traditional |
Where Drone Surveying Wins
- ✓ 60-80% faster field data collection
- ✓ 50-75% lower cost for sites over 5 acres
- ✓ Millions of data points vs. hundreds
- ✓ Orthomosaic imagery as a deliverable
- ✓ Safer for hazardous terrain
- ✓ Repeat flights cost a fraction of ground crew mobilization
Where Traditional Surveying Wins
- ✓ Sub-centimeter precision for legal work
- ✓ Required for boundary and plat surveys
- ✓ Works in dense vegetation without LiDAR
- ✓ Can locate underground utilities with GPR
- ✓ More cost-effective for very small sites
- ✓ Licensed surveyor stamp available
Decision Framework: 5 Questions to Ask
- Is this a legal boundary or recorded plat survey? If yes, you need a licensed land surveyor with traditional methods. No exceptions.
- Is the site larger than 5 acres? If yes, drone surveying will almost always be more cost-effective and produce better surface data.
- Do you need orthomosaic imagery or 3D models? Only drone surveying produces these. Traditional surveys give you points and lines.
- How often will this survey be repeated? Weekly or monthly progress monitoring favors drones heavily. Each repeat flight costs a fraction of a ground crew mobilization.
- Is dense vegetation covering the ground surface? Photogrammetry cannot see through canopy. Use drone LiDAR, or fall back to traditional methods if LiDAR is not available in your area.

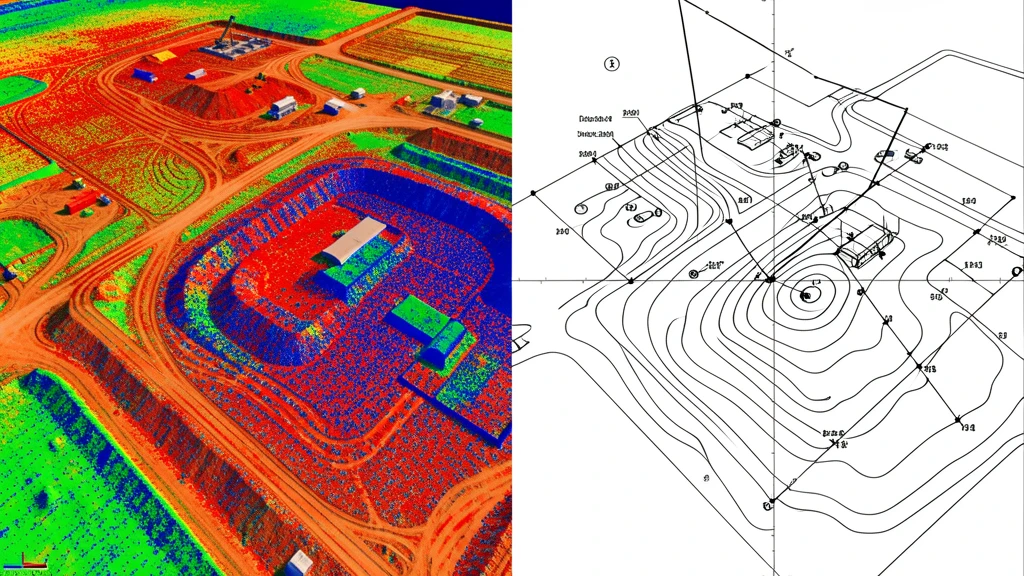

Drone surveys produce visual, measurable deliverables that traditional methods simply cannot match.
Frequently Asked Questions
Is drone surveying as accurate as traditional surveying?
With RTK GPS and ground control points, drone photogrammetry achieves 1-3 cm horizontal and 2-5 cm vertical accuracy. That meets ASPRS standards for most construction, mapping, and volume calculation work. Traditional ground surveying with a total station can reach sub-centimeter accuracy, which may be required for legal boundary surveys or sub-grade utility staking. For most site planning, earthwork, and progress monitoring applications, drone accuracy is more than sufficient.
How much cheaper is drone surveying compared to traditional methods?
Drone surveys typically cost 50-75% less than traditional ground surveys for sites over 5 acres. A 20-acre site that costs $15,000-$30,000 for a traditional topographic survey can be drone-mapped for $3,000-$6,000. The savings increase with site size because drone flight time scales far better than ground crew time.
Can a drone survey replace a licensed land surveyor?
Drone surveys produce highly accurate topographic data, 3D models, and orthomosaics, but they do not replace a licensed land surveyor for legal boundary determination, property line marking, or recorded plat surveys. Many drone survey providers partner with licensed surveyors who can stamp and certify the deliverables when needed. For construction site planning, progress tracking, and volume calculations, drone data alone is typically sufficient.
When should I use traditional surveying instead of a drone?
Traditional surveying is the better choice for sites under 1 acre, legal boundary surveys, underground utility location, and situations requiring sub-centimeter precision. Dense vegetation is also a challenge for photogrammetry, though LiDAR can penetrate canopy. If your project involves property disputes, recorded subdivisions, or FEMA flood certificates, a licensed surveyor using traditional methods is required.
How fast can a drone survey be completed?
A typical 40-acre site can be flown in 30-60 minutes of field time. Processing takes 1-4 hours depending on data volume and whether cloud or local processing is used. Total turnaround from field to deliverable is often same-day for standard photogrammetry. A traditional ground survey of the same site would take 2-4 days of field work plus 1-2 days of office processing.
What deliverables do drone surveys produce that traditional surveys do not?
Drone surveys produce orthomosaic maps (high-resolution stitched aerial imagery), 3D point clouds, textured mesh models, and digital surface models. Traditional ground surveys produce point-based measurements and CAD drawings. A drone survey captures millions of data points across the entire site surface, while a ground survey captures specific shot locations. This means drone data can be re-queried after the fact for measurements that were not explicitly collected in the field.
